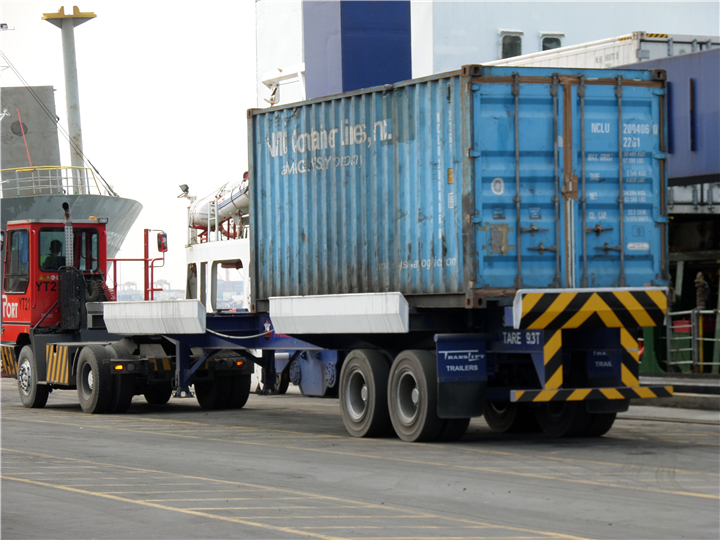

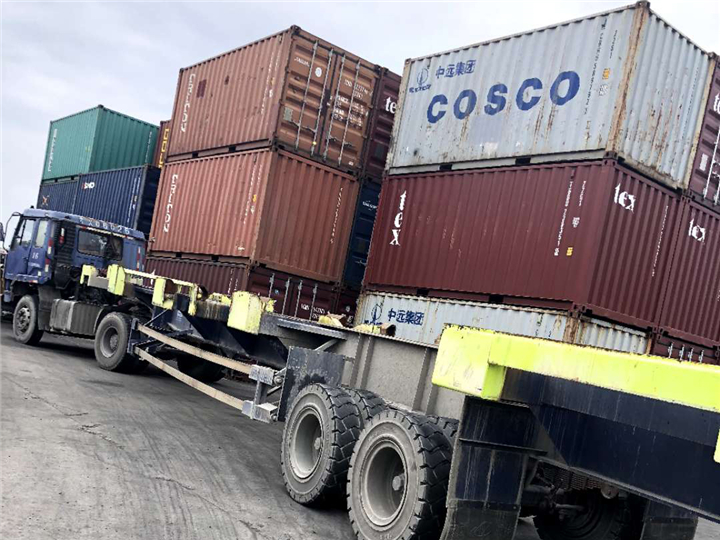

Solid Tires for Container Trailers

The flat tread curve, optimized tire structure and rubber composition make our stacker tires extremely stable, overcoming the potential safety risks caused by the high lifting height of stacker operations. The low heat generation, tear resistance and super wear-resistant tread rubber successfully prevent tire blowouts, cracks, chunk loss and poor wear resistance caused by frequent turns and small turning radius of stackers.

product details

PRODUCTS SPECIFICATIONS

No.	Size of Tire	Rim Size	Pattern No.	Outside Diameter	Section Width	Net Weight(Kg)	Max Load (Kg)
				Outside Diameter	Section Width	Net Weight(Kg)	Industrial Vehicles
				±5mm	±5mm	±1.5%kg	25km/h
1	10.00-20	6.00/7.00/7.50/8.00	R701	1041	248	170	5000
2	10.00-20	7.50/8.00	R700	1041	248	176	5000
3	11.00-20	7.50/8.00	R701	1058	270	193	5450
4	12.00-20	8.00/8.50/10.00(W)	R701/R700	1112	285	230	6300
